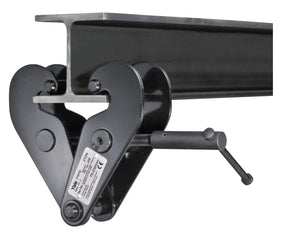

Yale YC Standard Adjustable Beam Clamps
Yale 'Standard' Beam Clamp provides a quick and versatile rigging point for hoisting, lifting equipment, pulley blocks or loads and comes complete with a locking device. The unit offers complete flexibility, due to the wide adjustment range. The central threaded spindle allows easy attachment and a safe and secure grip to the beam flange.
|
Yale
Part No.
|
Capacity (tonnes)
|
Flange width/range (mm)
|
Clamp weight (kg)
|
|
YC1
|
1 tonne
|
75 - 230 mm
|
3.8
|
|
YC2
|
2 tonne
|
75 - 230 mm
|
4.6
|
|
YC3
|
3 tonne
|
80 - 320 mm
|
9.2
|
|
YC5
|
5 tonne
|
90 - 320 mm
|
11.0
|
|
YC10
|
10 tonne
|
90 - 320 mm
|
17.2
|
