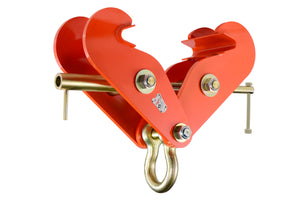

Tiger BCF Fixed Jaw Heavy Duty Beam Clamp With Shackle

BCF Fixed Jaw Heavy Duty Beam Clamp With Shackle

• Range from 1.0t to 30.0t
• *NEW* 6.0t and 10.0t models available to suit extra wide flange beams
• Quick and versatile rigging point for hoisting equipment
• Shackle suspension point
• Suitable for pulling and lifting at angles across the beam
• Up to 90° side loading with no deration
• 15° cross loading with no deration
• Highly flexible- for lifting, pulling or as a semi-permanent anchor point
• Evenly distributed loads achieved through maximum jaw surface area
• Multi directional adjusting screw spindle ensures a high clamping force to the
various flange sizes within its capacity
• Beam width range 75mm to 457mm
• Optional locking device for 1t -10t (as standard on 15t - 30t)
• Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C
available as an option)
• Factor of safety: 5:1 for straight pulling and lifting, 4:1 at other angles stated
above
• These units meet and exceed all the requirements within BS EN 13155:2003
+ A2:2009 and AS4991
