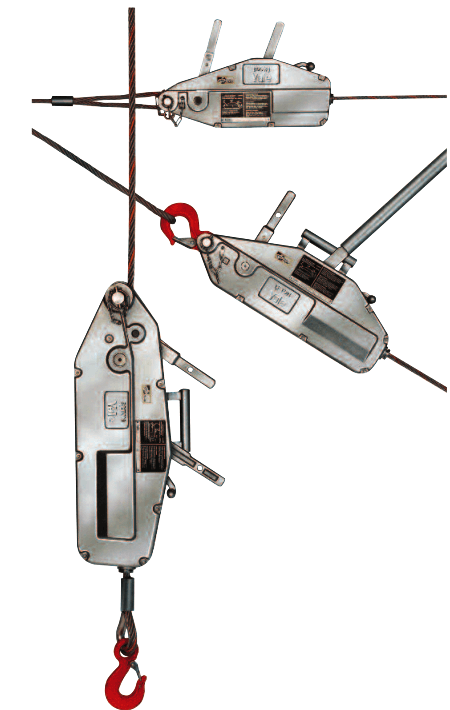

Yaletrac® 'Aluminium' Cable Pullers
Pulling force: 800 - 3200 daN
The Yaletrac® range of portable cable pullers provide a versatile tool for
pulling, lifting, lowering, tensioning, and securing loads over long distances.
They are easy and safe to use and are almost service free.
They are light weight, compact, high strength aluminium alloy housing with a
large flat bottom surface for increased stability in horizontal as well as vertical
working positions.
Specifically designed for applications within industry, building construction, civil
engineering, ship building, power line construction, and oil refineries, etc.
Yale also manufacture an ‘all steel’ unit designed specifically for the mining
industry.
Features and benefits include:
Forward and reversing levers, operating in tandem provide slim design
and assure power transfer along the centre line.
A lever disengages the rope clamp system allowing easy and smooth
installation / removal of the wire rope.
Overload protection is provided by a shear pin in the forward operating
lever. Spare shear pins are conveniently located in the carrying handle or
operating lever.
Large opening in the top of the units allows easy cleaning: simply flush
the unit with a bucket of water, apply motor oil for lubrication and the
Yaletrac® is ready for use again.
The Yaletrac® cable pullers use a special flexible wire rope. It has six strands
with a steel core. The rope is tapered at one end for easy threading and
fitted with an eye sling hook with safety latch on the other end.
The Yaletrac® range of portable cable pullers provide a versatile tool for
pulling, lifting, lowering, tensioning, and securing loads over long distances.
They are easy and safe to use and are almost service free.
They are light weight, compact, high strength aluminium alloy housing with a
large flat bottom surface for increased stability in horizontal as well as vertical
working positions.
Specifically designed for applications within industry, building construction, civil
engineering, ship building, power line construction, and oil refineries, etc.
Yale also manufacture an ‘all steel’ unit designed specifically for the mining
industry.
Features and benefits include:
Forward and reversing levers, operating in tandem provide slim design
and assure power transfer along the centre line.
A lever disengages the rope clamp system allowing easy and smooth
installation / removal of the wire rope.
Overload protection is provided by a shear pin in the forward operating
lever. Spare shear pins are conveniently located in the carrying handle or
operating lever.
Large opening in the top of the units allows easy cleaning: simply flush
the unit with a bucket of water, apply motor oil for lubrication and the
Yaletrac® is ready for use again.
The Yaletrac® cable pullers use a special flexible wire rope. It has six strands
with a steel core. The rope is tapered at one end for easy threading and
fitted with an eye sling hook with safety latch on the other end.
