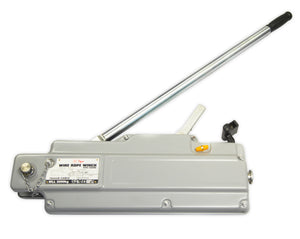

TRPS Wire Rope Puller

TRPS Wire Rope Puller

The manual wire rope puller is a hand operated lifting and pulling device. The puller
could also be used for lowering, tensioning and guying which makes it a versatile,
portable and multipurpose tool.
The principle function of the wire puller is that the rope passes through mechanical
jaws rather than being reeled on a drum of a puller or conventional winch.
The tension of the rope is applied by means of two pairs of
self-energised jaws which apply a grip onto the wire rope in sections.
The effort is transferred to the jaws by two parallel levers, one for forward operation
and the other for reverse operation. A telescopic bar, fitted to either the forward or
reverse lever, transmits the effort to the jaw mechanism.
This parallel clamping system provides an evenly distributed grip at a lower force,
resulting in less rope wear. The load is held securely at all times.
